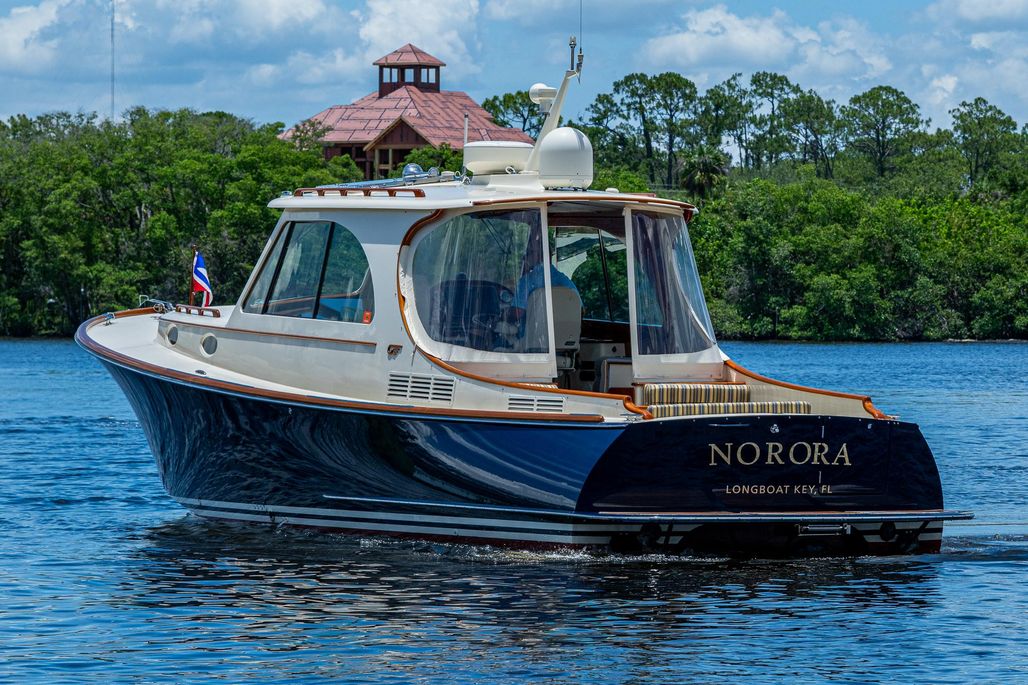

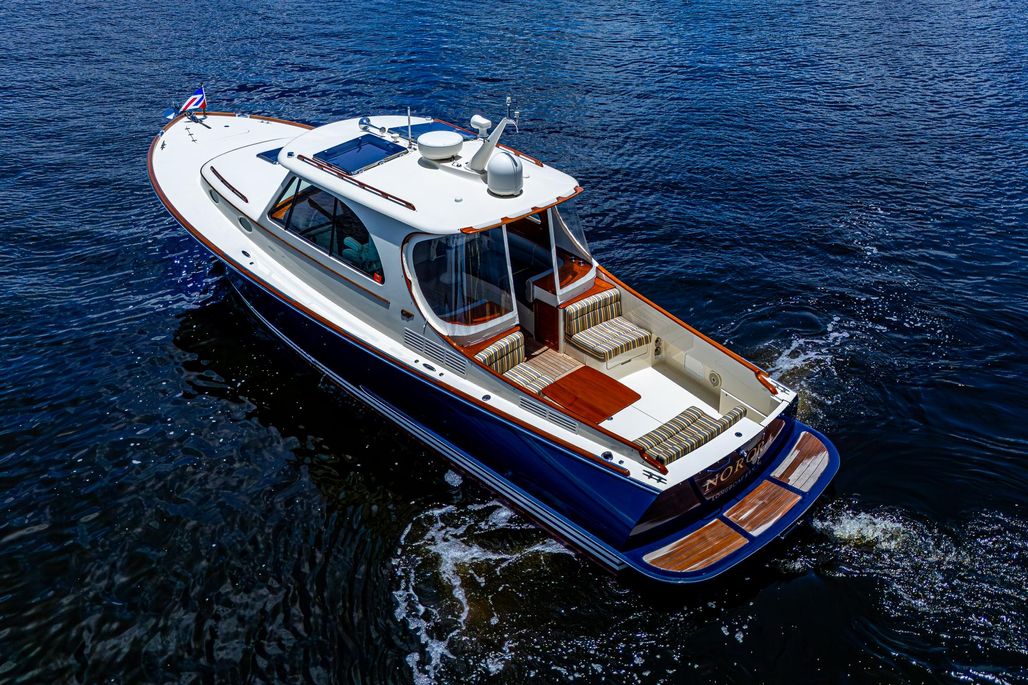

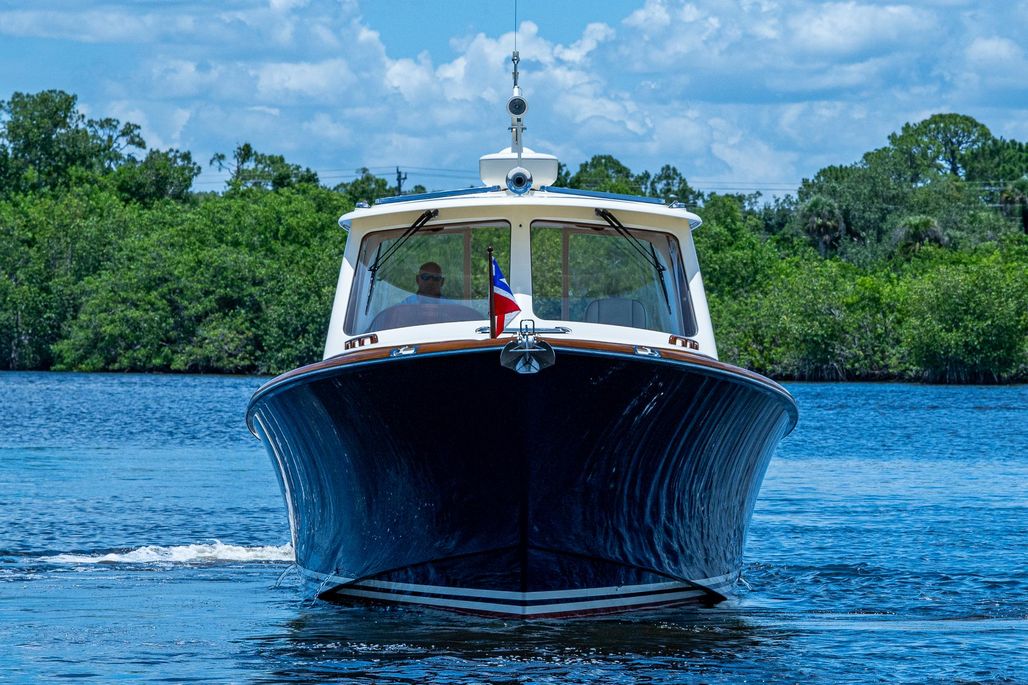

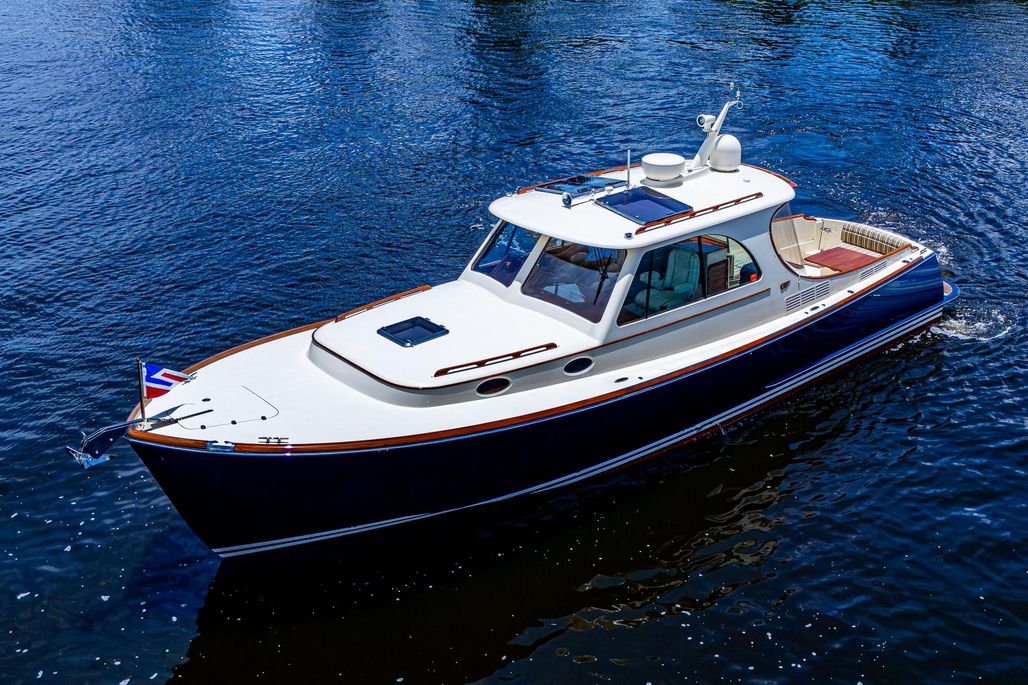

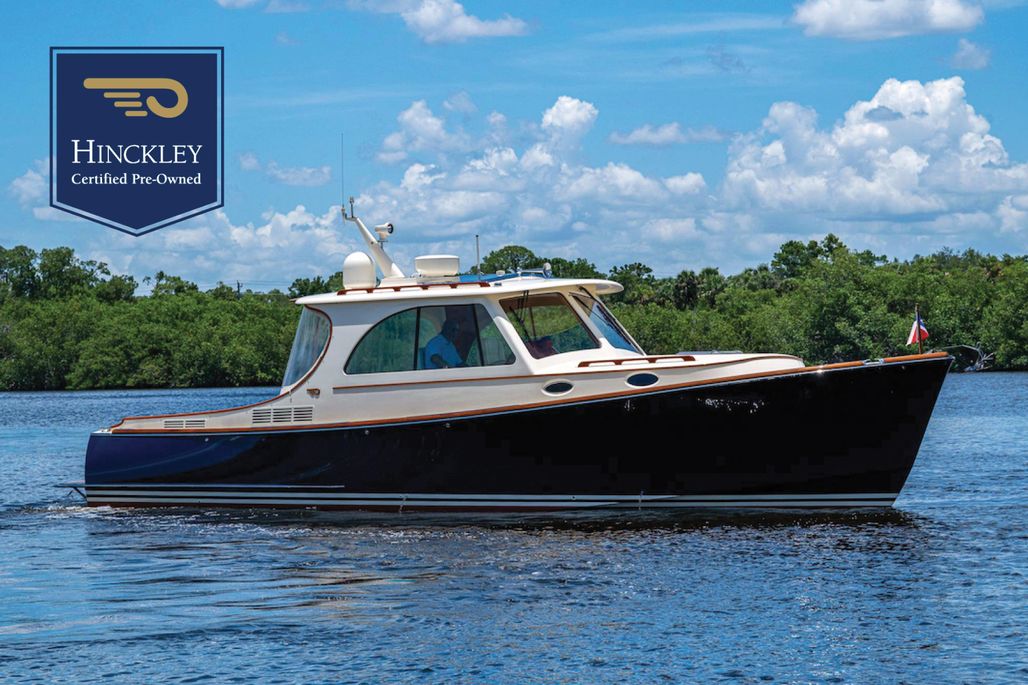

2016 Hinckley Picnic Boat 37 MKIII

NORORA is one of the only Picnic Boat 37 MII's that is on the market by its original owner. Maintained annually with Hinckley's Jet Boat Service Package, NORORA allows its new owner to enjoy countless worry-free hours of enjoyment with family and friends.

DECK & HULL:

Construction of the hull is Hinckley DualGuard® Composite Construction Kevlar E-glass hybrid outer skin and Carbon-fiber inner skin.  SCRIMP® laminated with vinylester resin. Deck and cockpit are E-glass with closed-cell foam core, SCRIMPED with vinylester resin.

• Flag Blue Awlgrip hull paint
• Awlgrip Cream gelcoat non-skid decks.
• Awlgrip Cream double bootstripe to match deck
• Red Micron bottom paint
• Marelon ball-valve seacocks with thru-hulls below water line and Marelon thru-hulls above the waterline
• Stainless steel half round on fiberglass molded rub rail
• Stainless steel chafe gear mounted across transom and stern door.

SWIM PLATFORM:

Heavy-duty fiberglass swim platform with optional teak inserts, stainless steel bracket and half round.

• Stainless steel telescoping 3-step folding swim ladder that stores under platform

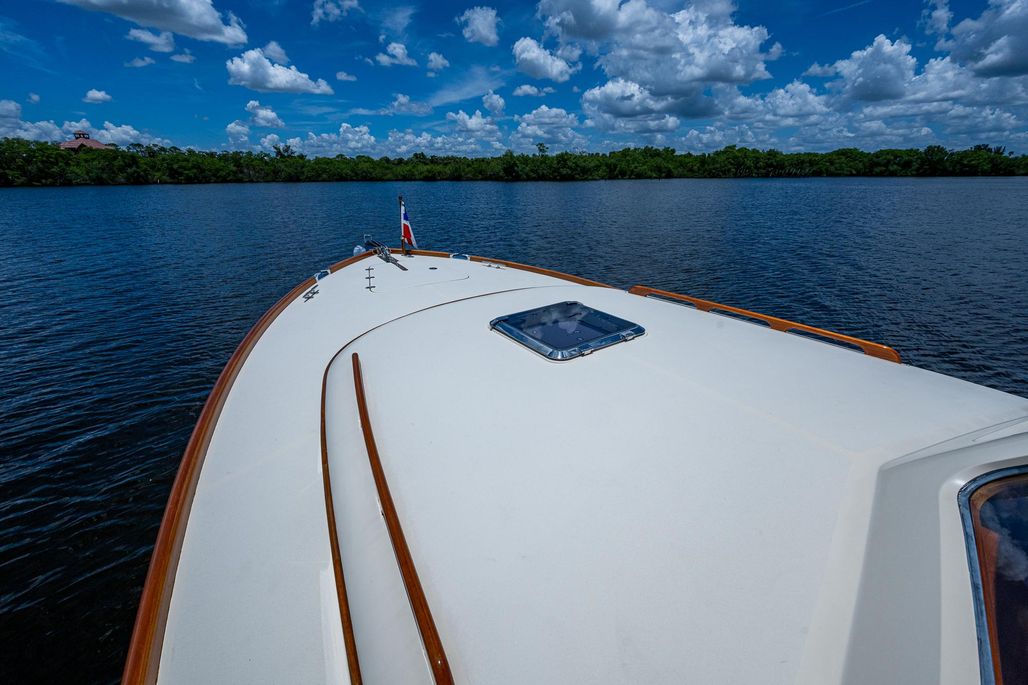

DECK FEATURES:

• Flush foredeck anchor locker with hinged hatch and fold-out anchor roller. Hinckley designed polished SS folding anchor roller with 12-volt windlass.  Windlass controls at helm and handheld wireless remote.  Polished SS Delta anchor with 25’ SS chain and 150’ rode.
• Optional fresh water washdown in anchor well
• Rounded, tapered, varnished teak toe rail with Hinckley profile
• Varnished teak eyebrow molding around cabin top
• Varnished teak handrails on house top, cabin and aft end of pilothouse
• Four (4) elliptical ports on house sides with opening port in the head.
• Large powered opening side windows in Pilothouse
• Optional (2) Stainless Steel opening hatches in the Pilothouse with Ocean Air Sky Screens
• Hinckley 316L stainless steel bow chocks
• Bow, stern and 316L stainless steel mooring cleats - mid-rail easily reached from cockpit – pop-up mid ship cleats
• Fender padeyes with toe rail chafe strips
• Stainless Steel swim handle on transom painted to match hull
• Single bay varnished teak handrail mounted at port dash
• Optional varnished teak package including dash, pilothouse liners and lower helm pod
• Two (2) stainless steel combination rod holders/drink holders mounted on the port (1) and starboard (1) side decks
• Remote controlled spotlight on mast, painted to match deck

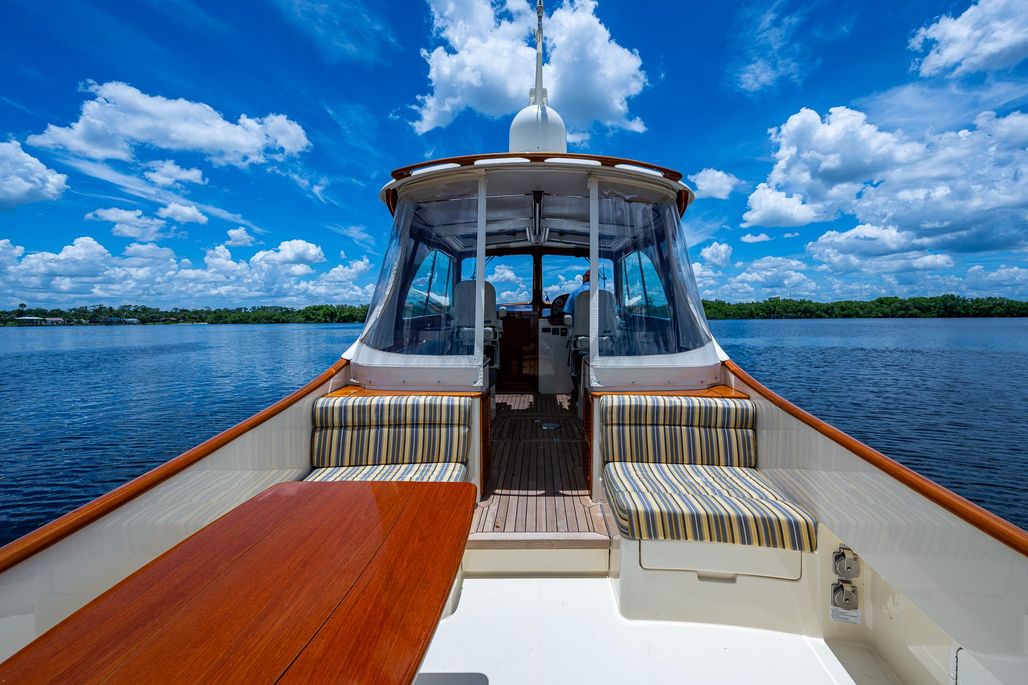

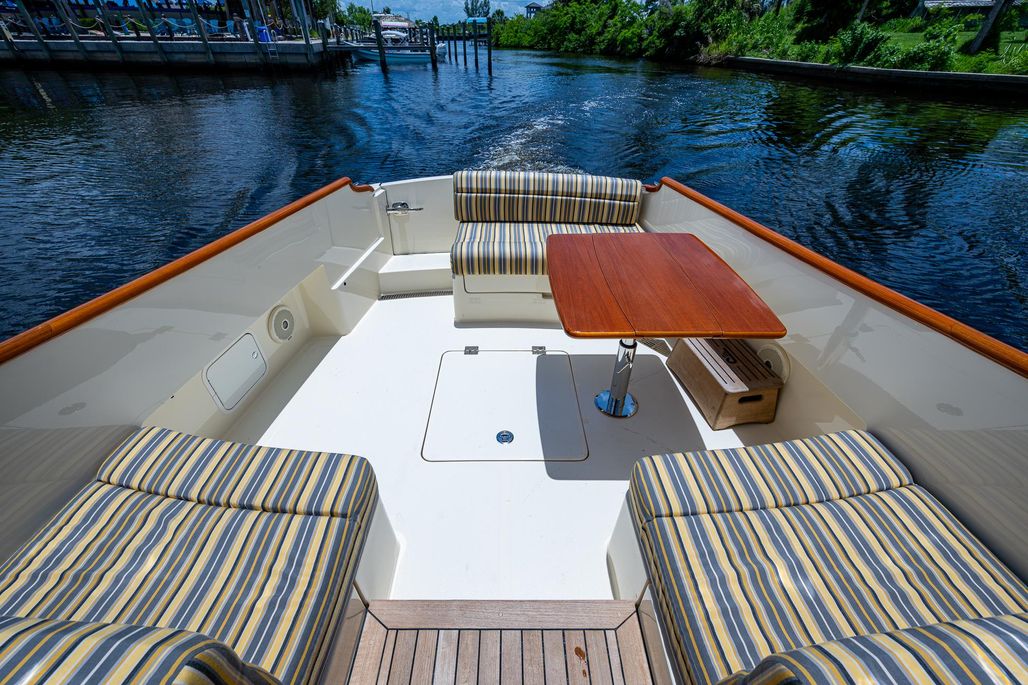

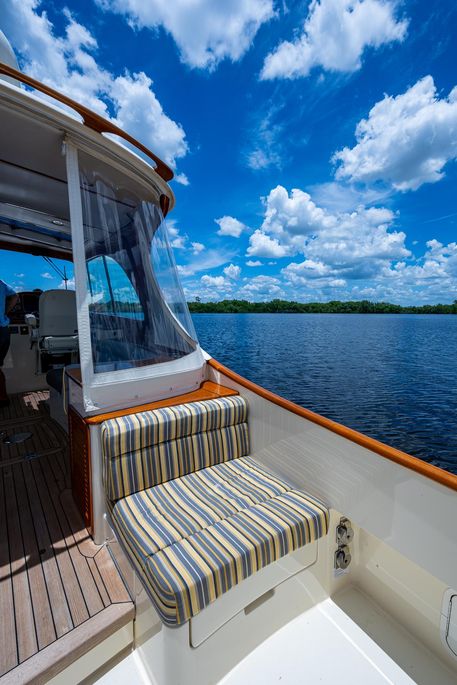

COCKPIT:

• Starboard transom door from swim platform
• Removable filler in front of transom door with upholstered cushions in Sunbrella Foster Metallic

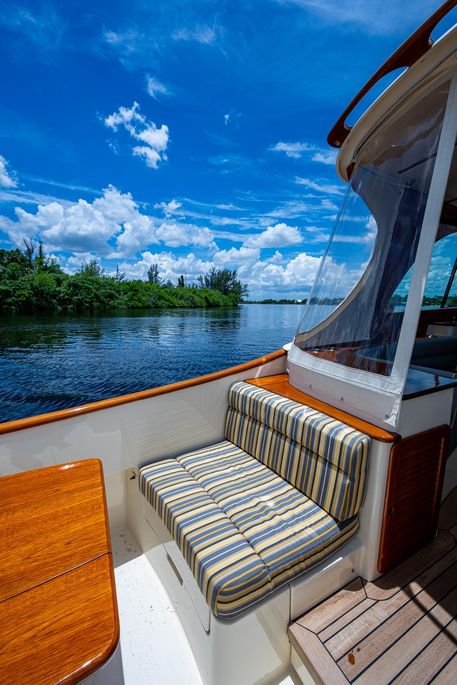

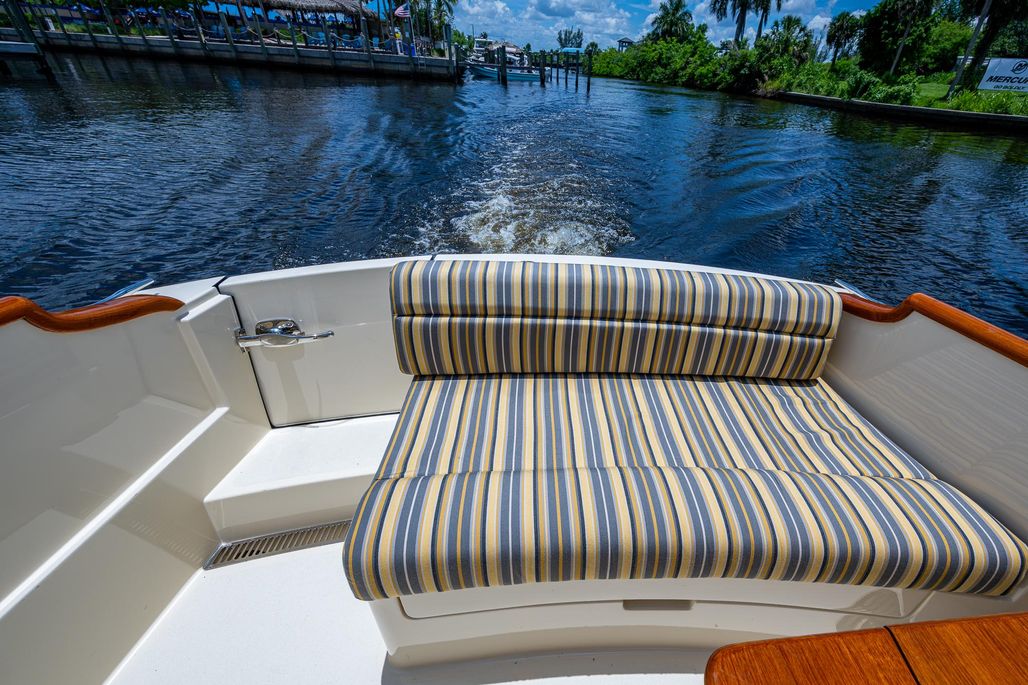

• Cockpit cushions in Sunbrella Foster Metallic.
• Teak boarding step for port or starboard side deck
• Courtesy lights under side decks port and starboard
• Cockpit/pilothouse lockers with varnished louvered teak doors with custom optioned storage above via hinged amenity lids.
• Cockpit shower with mixing valve at stern seat
• Optional additional speakers located in cockpit
• Stamoid cockpit mooring cover

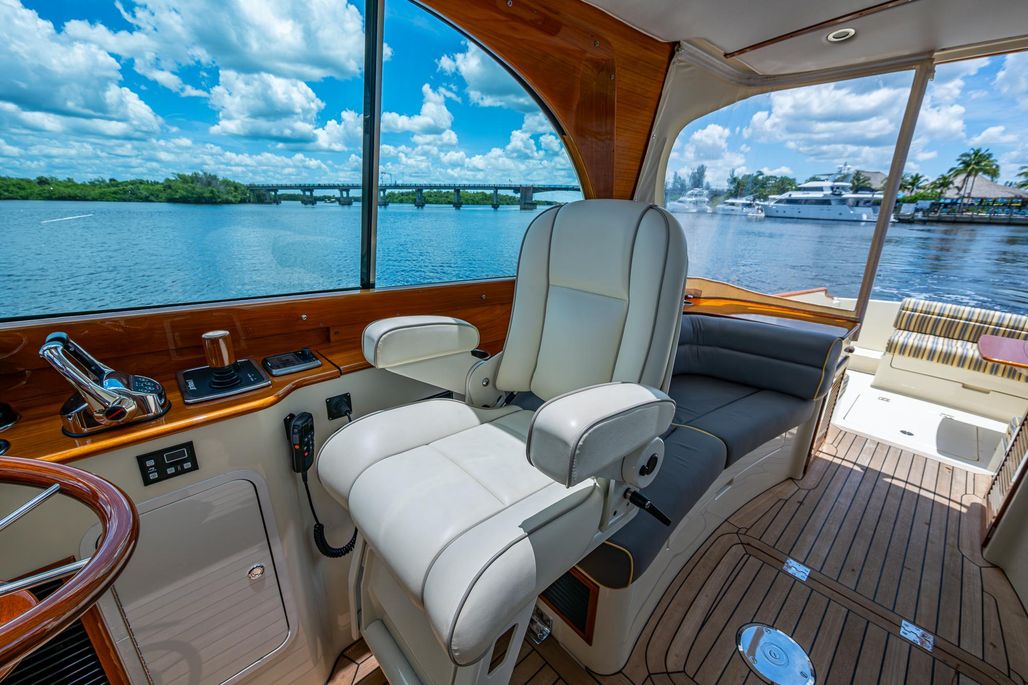

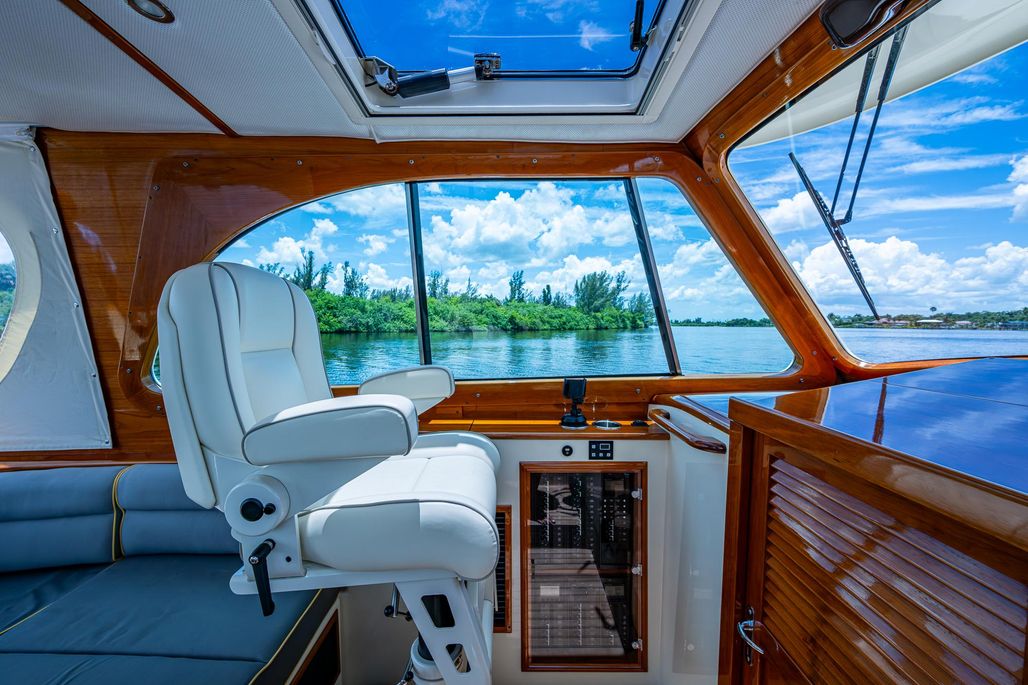

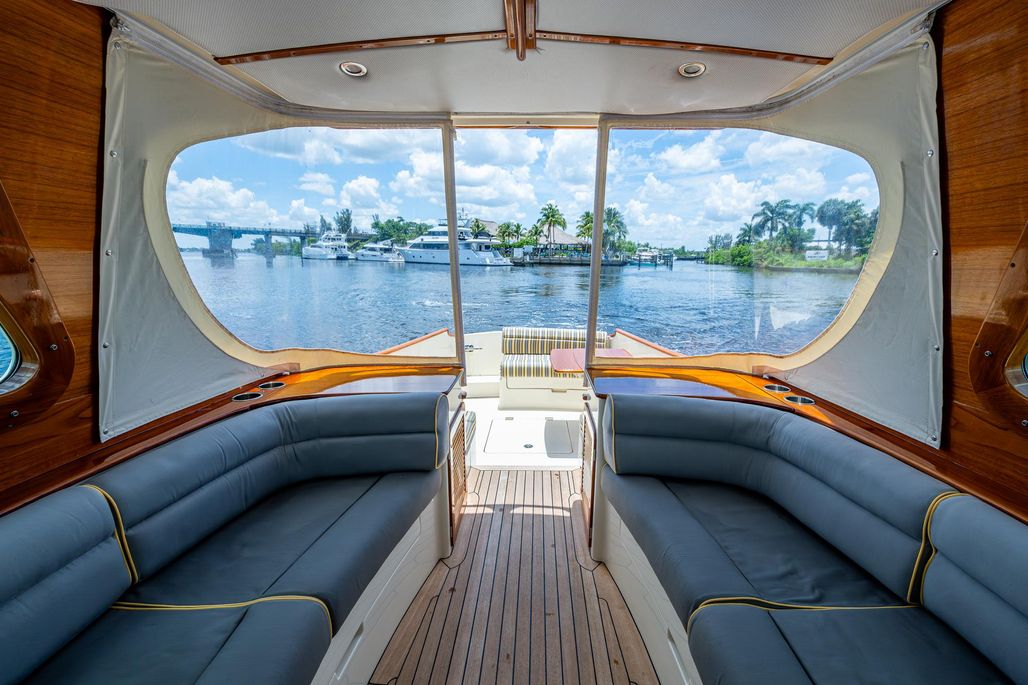

PILOTHOUSE:

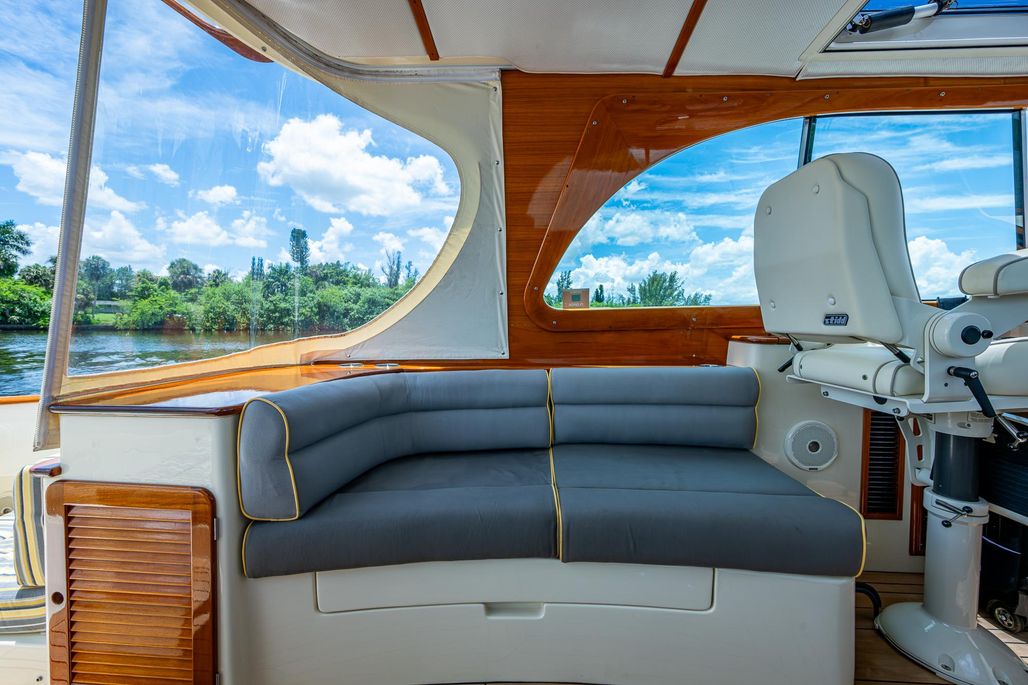

The Pilothouse is fully air conditioned and features Luxor leather Soft Touch BR-01 Vellum with Stone piping helm chairs with settee cushions finished in Sunbrella Spectrum Graphite with Canvas Buttercup Piping.

• Optional Varnished teak pilothouse liners and dash
• Optional teak decks in pilothouse and cockpit with traditional black seams
• Optional varnished teak fiddle across entire helm dash.
• (4) Pilothouse windows include: (2) Electric Sliding side windows and (2) Fixed, forward with heavy duty, self-parking, intermittent windshield wipers and freshwater washers
• Insulated white overhead has two optional (2) stainless steel opening oversized hatches with Ocean Air Sky screens/shades
• Stidd helm Chairs with integral folding footrest.

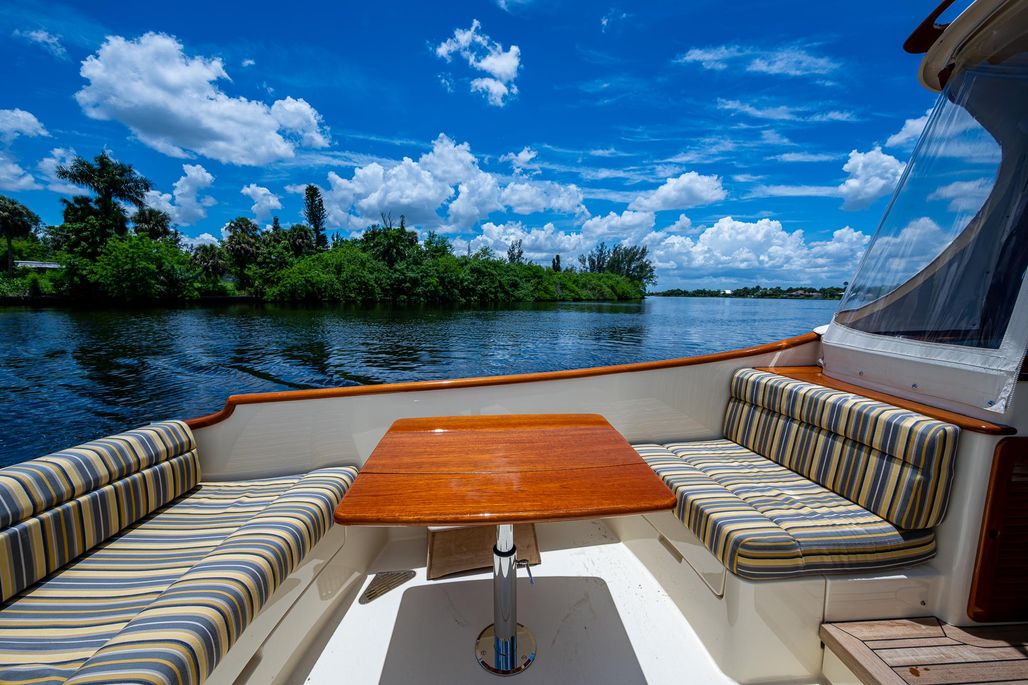

• Optional pilothouse table with stainless steel pedestal and canvas cover with storage bag. High/low table pedastal for cocktail/dining.
• Two 12,000 BTU air conditioning/reverse cycle heat units in pilothouse with separate controls for port and starboard.
• Additional illumination is by four (4) overhead low-voltage LED lights
• Storage lockers under pilothouse settees
• (10) Cup holders, three at each settee and two at each helm location
• Glove box/storage at port and starboard helm shelves
• Varnished teak locking companionway door
• Varnished teak handrail on centerline
• Stamoid 3-piece drop curtains with Eisenglass windows
• Optional 110V AC waterproof outlet in pilothouse

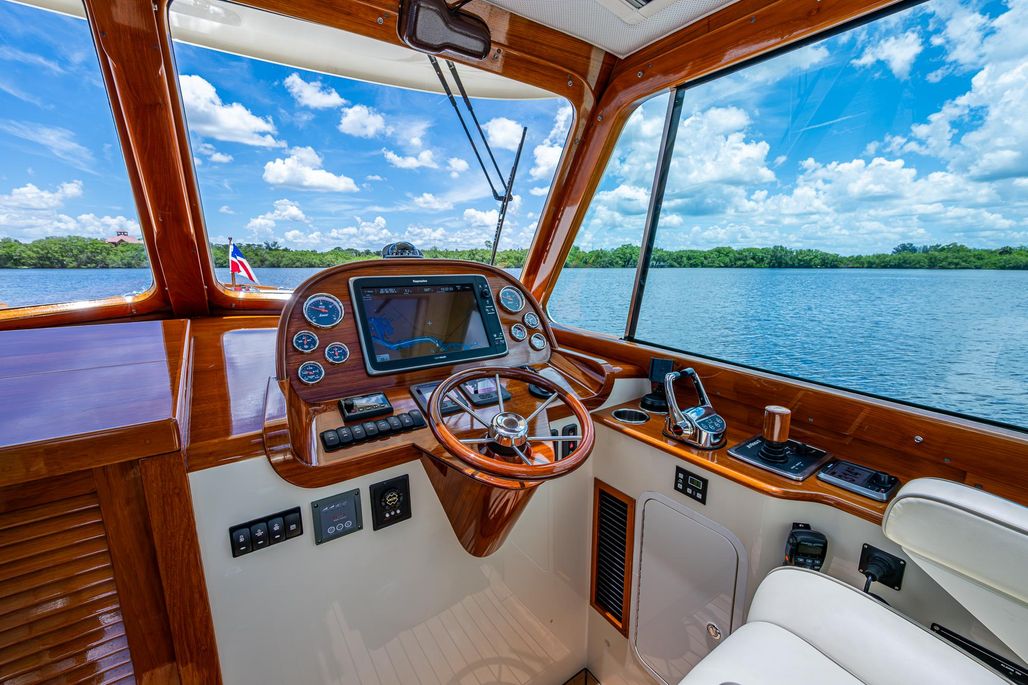

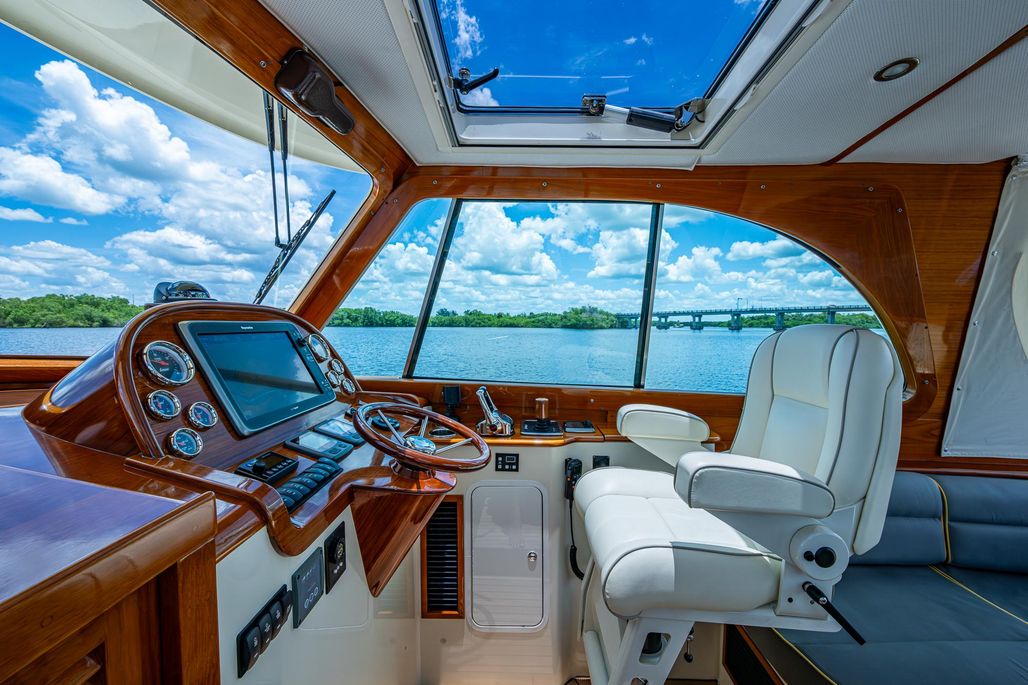

Helm Station (Starboard)

• Varnished teak instrument pod
• Stainless steel 14” steering wheel with varnished wood rim
• Hinckley “JetStick II®” with H-Lock and Heading hold features
• Engine gauges, tachometer with hour meter, oil pressure, water temp., nozzle indicator
• Glove box/storage with lid at aft end of starboard shelf and USB jacks
• (2) Cup holders
• Remote anchor switch to starboard in safety red.

Helm Electronics and Navigation Equipment

• Raymarine E165 16-inch Multi-touch Widescreen Chartplotter/Sonar/Radar display
• Raymarine display fully integrated with Yanmar engines.
• Raymarine i70 Display includes speed, depth, heading, wind and environment
• Standard Horizon Explorer Gx1600BVHF radio with RAM mic.
• Raymarine GPS NMEA 2000 position receiver/antenna
• Raymarine HD 4kw high-definition 18” dome radar
• Independent climate controls at port and starboard helm
• Sirius XM satellite weather for Raymarine eS-Series
• ACR spotlight mounted to mast with remote located to port of helm

Entertainment Electronics

• Fusion FM/CD/Satellite receiver ready Stereo with wired remote at helm

ACCOMODATIONS AND LAYOUT:

Custom LED Interior Lighting Package includes 7 overhead fixtures over the main cabin and galley areas; 3 overhead fixtures inside the head; 2 chrome reading lights and step lights.

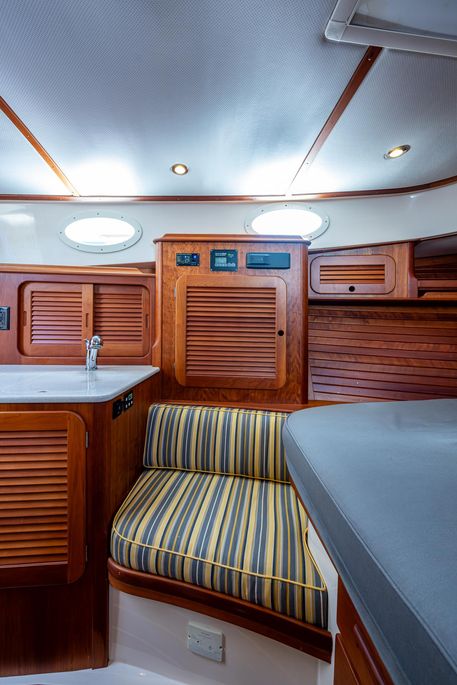

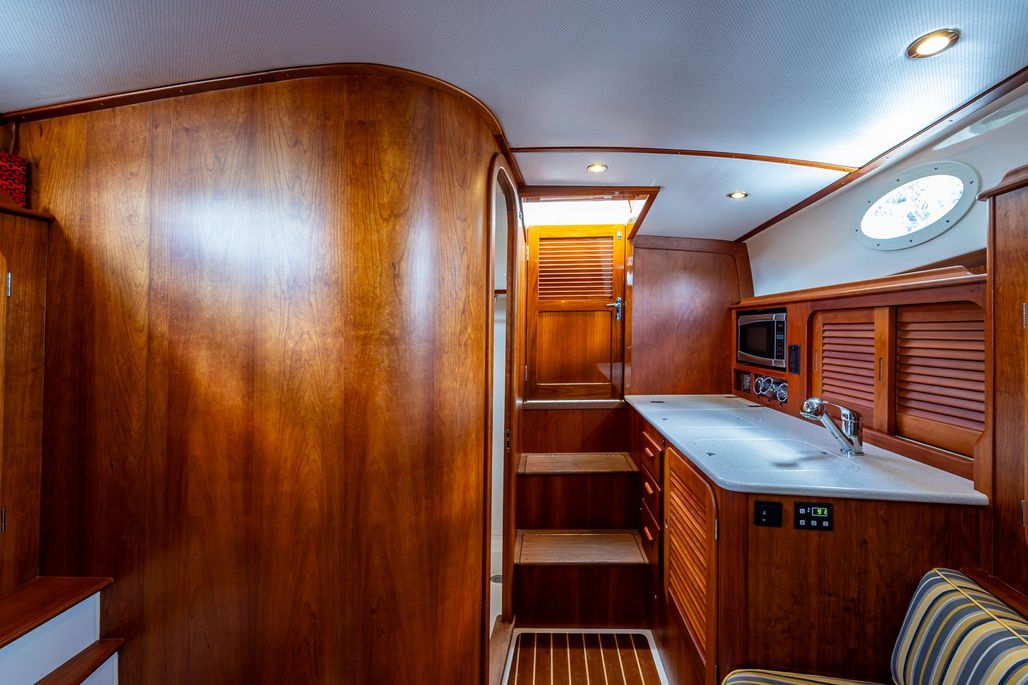

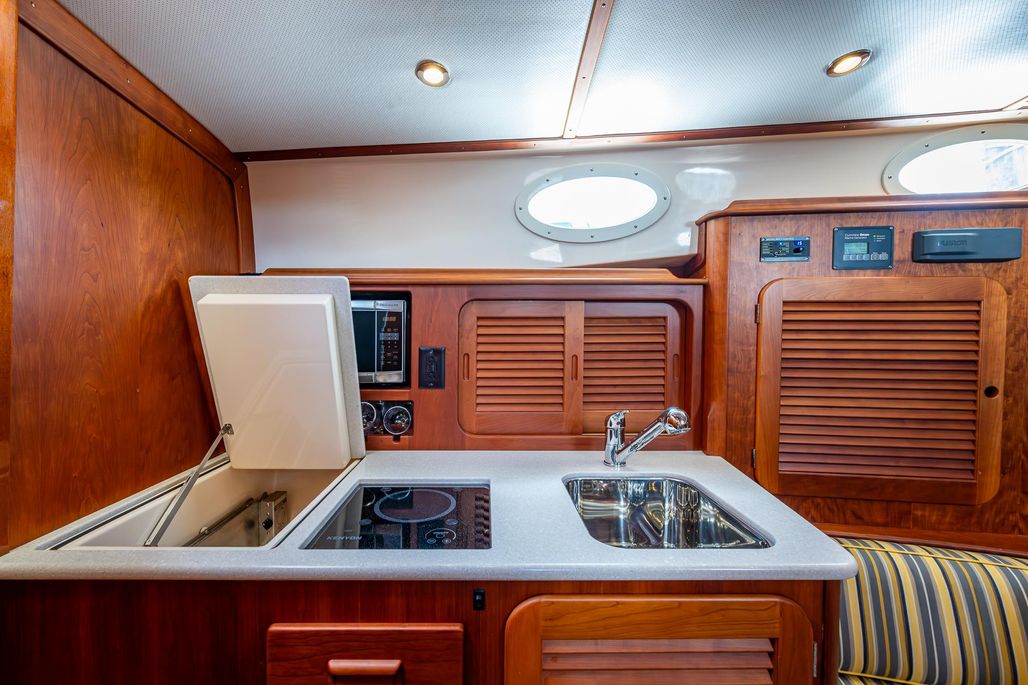

GALLEY (Port):

• Corian Savannah countertop in galley
• Stainless steel sink with Grohe fixtures, spray nozzle and hot and cold pressure water.
• Adler Barbour refrigeration – 12-volt cold plate in a self-draining insulated box
• 110-volt microwave oven
• 110-volt outlet
• Built-in bin for dish stowage
• (3) Cherry pullout drawers
• Red step-light in galley
• Under counter pull-out garbage receptacle
• Additional storage is provided outboard and under the galley sink.
• A “pantry” locker with louvered door and several shelves separates the galley from the forward V-berth area and houses the stereo system.

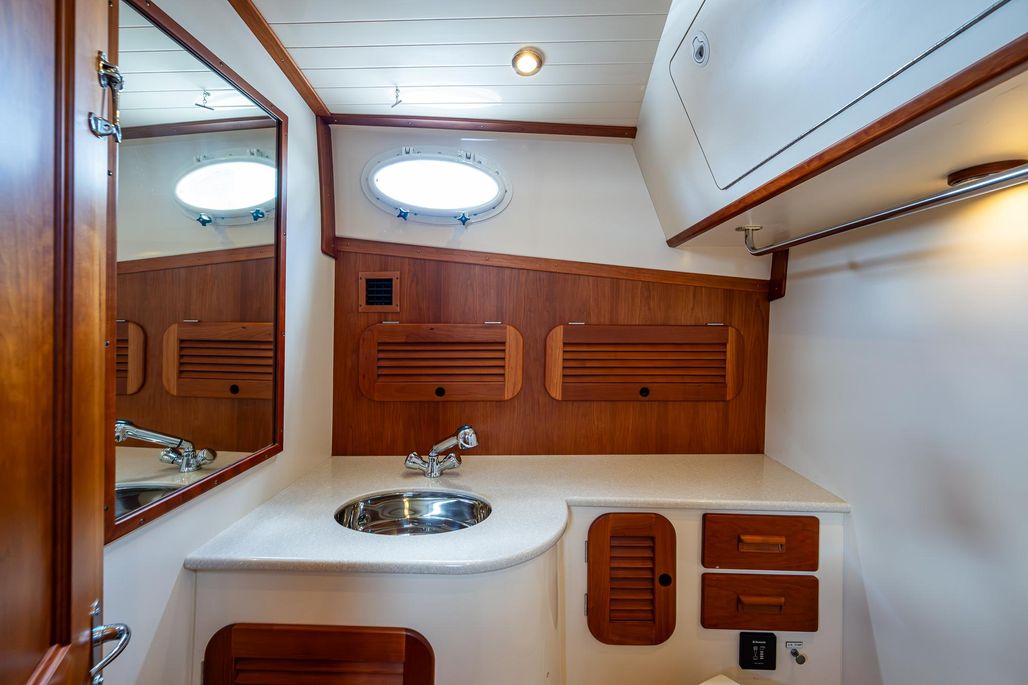

HEAD (Next aft starboard):

• Solid cherry door panel door
• Corian Savannah countertop
• Gloss varnished cherry countertop and under-mounted porcelain sink.
• Grohe faucet/handheld shower provides hot & cold pressure water – bracket for shower bulkhead mounted
• Sealand Vacu-Flush electric marine head is plumbed to a 27-gallon holding tank and overboard discharge
• Mirror on the forward bulkhead with cherry frame.
• Storage is provided by cherry faced lockers above and outboard the vanity, a drawer with a cherry face beside the marine head, and a locker under the vanity.
• 110-volt outlet
• Air conditioning/heat outlet in head
• Opening port with screen, as well as forced ventilation.
• Stainless steel towel bar
• Hella fan with power jacks 1 in head

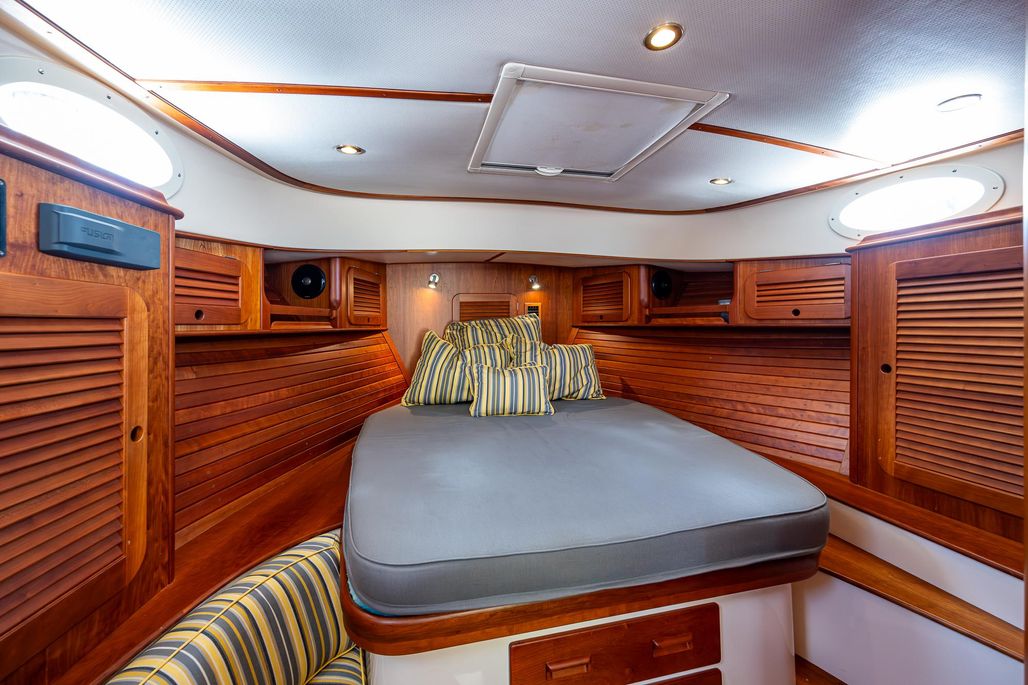

Traditional V BERTH (Forward):

• Queen V berth with easy access to the bunk.
• Additional 110v receptacle at sheer locker
• Cedar-lined hanging locker is just aft of the berths to starboard.
• Overhead Stainless-Steel opening hatch with Ocean Air Sky screen/shade.
• Air conditioning/heat outlet in cabin with zone control located at galley aft face
• Forward berth cushion in Sunbrella Spectrum Graphite
• Forward cabin seat in Sunbrella Foster Metallic with Canvas Buttercup piping
• Custom dimmable LED lighting over berth and twin Hella fans.
• KVH TV3 Sat TV system with one DirecTV receiver

ELECTRICAL SYSTEM:

• Optional 9 KW Onan generator with sound shield
• Low resistance, copper wire and sacrificial zinc anode bonding system.
• 3 Lumitec SeaBlazeX White/Blue LED underwater lights on the transom with switch at helm.

12-volt system:

• (2) 12-volt house batteries for a total of 420-amps.
• Start – Two 12-volt AGM Group 31 batteries with 950 CCA capability.
• House – Two 12-volt AGM Group 4D batteries – 210-amps each.
• Heavy-duty battery parallel switch allows emergency starting.
• (2) Two 185-amp 12 Volt D.C. alternators, one for house batteries and one for each starting battery
• 12-volt distribution panel includes thermo-magnetic breakers, volt and amp meter.

110-volt AC electrical system

• 110-volt shore power inlet and relay.
• (2) 30-amp shore power cord.  (1) dedicated to house and charging loads and (1) dedicated to climate control systems
• Victron Multiplus inverter/charger with 100-amp 12-volt multi-stage battery charging capability.
• 3000-watt pure sign wave inverter with control mounted in cabin
• Optional 110-volt outlet located at port helm

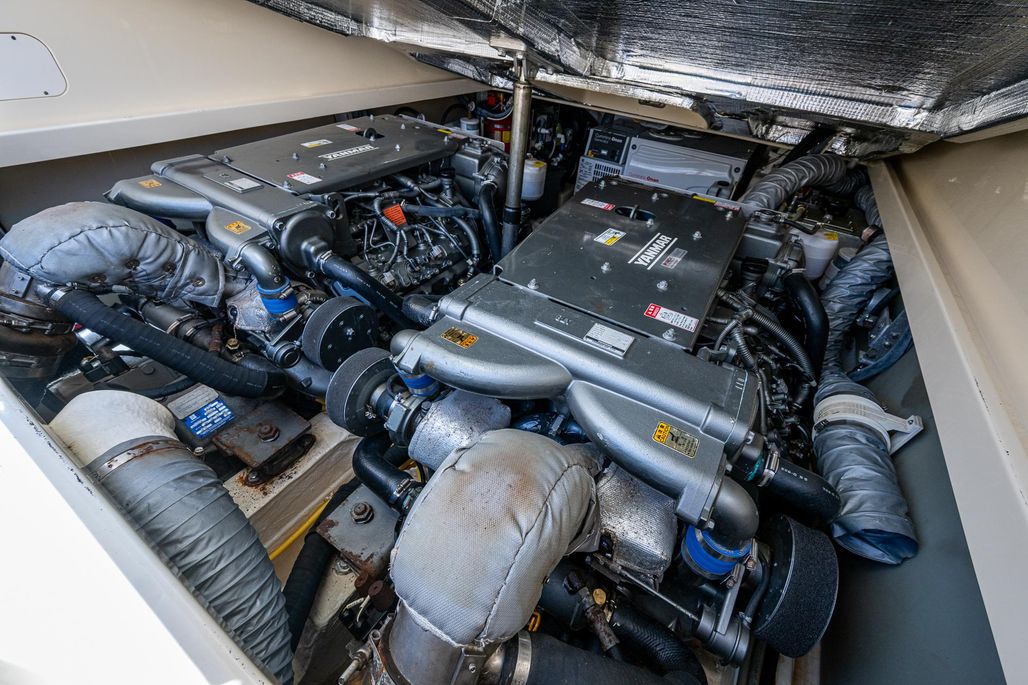

MECHANICAL EQUIPMENT & ENGINE DETAILS:

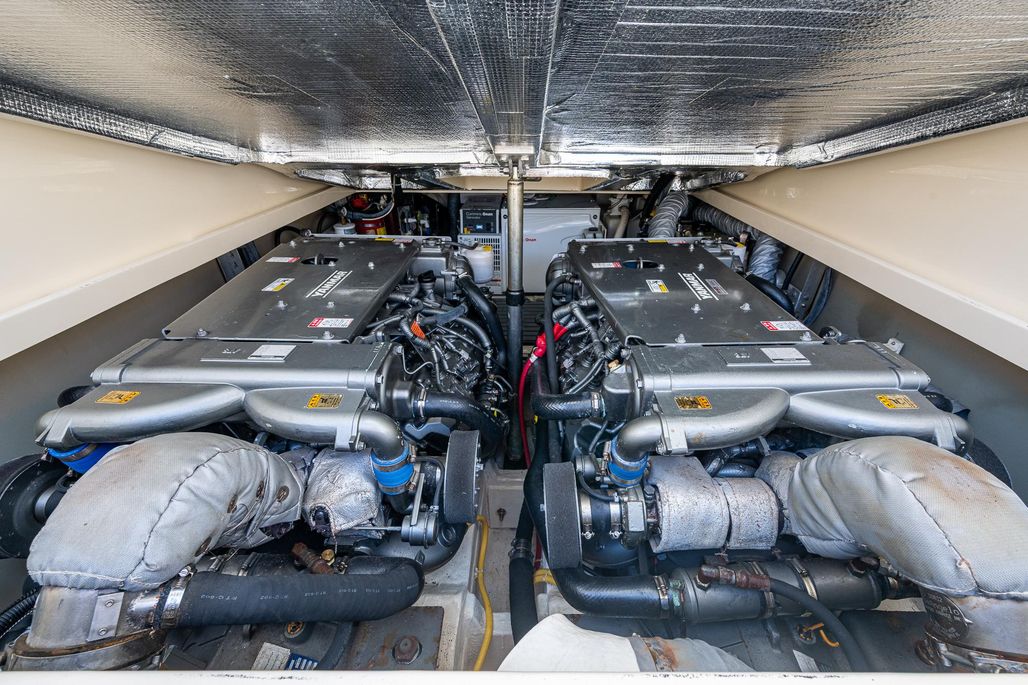

• Upgraded twin Yanmar 8LV 370hp diesel engines
• Hamilton 274 Jet Drives
• Twin ZF 63 transmissions
• 7” hydraulic variable thrust bow thruster
• Hinckley’s 2nd generation integrated “JetStick II” control system with Hinckley’s “H-Lock” automatic positioning and heading lock feature; fingertip control of vessel steering, motion (fore, aft and side) and position.
• Dual-cylinder trim tabs with indicator controls at helm
• Fuel filter/water separator with audible alarm panel at helm
• Fuel, oil pressure, and water temperature gauges.
• Alarms for high-low oil pressure, high engine water temperature and hydraulic pressure
• Optional overboard waste discharge
• Optional Algae-X for engines and generator
• Optional oil change kit. Reversible pump for changing oil on both engines and generator
• Manual hydraulic steering pump.
• (3) Electric 1500-GPH 12-volt bilge pumps with float switches and high-water alarm
• Whale emergency bilge pump - mounted in cockpit locker.
• In-line 12-volt automatic shower sump pump.
• 27-gallon holding tank.
• 6-gallon stainless steel hot water heater – shore power and engine heated.
• 40-gallon polyethylene water tank with remote gauge.
• (2) 110-gallon polyethylene fuel tanks - total 220-gallons.
• Mylar-faced acoustical foam-lined engine box insulation.
• Engine box cover has double gaskets and an electric riser.
• Engine box forced-air exhaust fan.
• Baffled and insulated air intake
• Automatic engine compartment fire suppression system, with automatic engine shutdown

SAFETY EQUIPMENT:

• Compass: Ritchie, mounted at helm seat.
• Fire Extinguisher: Three 2-1/2 lb. dry chemical.
• Flares: USCG approved flare kit.
• Horn: 12-volt Kahlenberg air horn mounted in engine box with switch on dash.
• Life Jackets
• Dock Lines
• Running Lights: Approved running and masthead lights.
• Fenders: Three 8" x 20" inflatable fenders with Polartec covers and Wichard snap hooks for each fender line.
• Boat Hook: Mounted under side deck.

Jupiter Marine Sales: Jupiter is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Hinckley Yacht Brokerage.
